First Congregational Church, U.C.C.
Waterville, Maine

Messrs. Czelusniak et Dugal, Inc., Northampton, Massachusetts, Rebuild Opus completed in the spring of 2008, enlarging and recasting the Berkshire Organ Co., Inc. 1968/1984 instrument previously serving here, now 3 manuals, 4 divisions, 33 ranks, Pitman and Unit electro- pneumatic actions, plus Chimes and Zimbelstern
Inaugural Recital, Sunday, July 27, 2008,
at 3 o’clock in the afternoon, by
Willis Bodine, Jr.
Retired Professor of Organ, University of Florida, Gainesville

STOPLIST

 GREAT 61notes(Unenclosed, with speaking façade)
1Gemshorn16'12pipesNew bass extension of Great 8' Unit

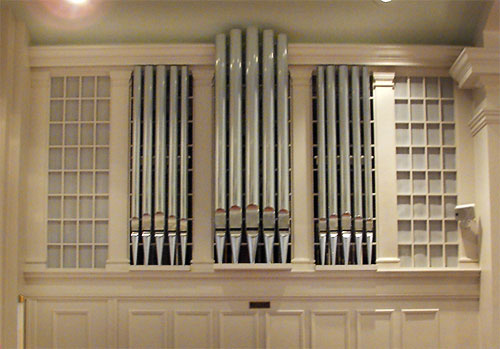

2Principal8'61New façade pipes in grille & revoiced
3Bourdon8'61Revoiced
4Gemshorn8'61Revoiced
5Octave4'61Revoiced
6Gemshorn4'12Extension of Great 8' Gemshorn unit
7Fifteenth2'61Moved from Swell division; revoiced to match
8Mixture IV1-1/3'244Recomposed to standard 5-break & revoiced
9Cromorne8'61New unit reed rank
10Trompete8'0(Pos.)New unit reed rank , with stops~
11Clarion4'0(Pos.)     borrowed from the Positiv division
12Swell to Great16'
13Swell to Great8'
14Swell to Great4'
15Positiv to Great16'
16Positiv to Great8'
17Great Unison Off
18Chimes21tubesExisting Chimes with new actions
SWELL61notes(Enclosed & Expressive)
1Rohr Gedeckt16'12pipes1-12 stopped wood; extension of Rohr Flute
2Rohr Flute8'6113-24 stopped wood; reregulated throughout
3Viole de Gambe8'61Reregulated
4Voix Celeste8'49(Tenor C) Reregulated
5Spitz Principal4'61New rank in Swell, place of Rohr Flute main
6Koppel Flute4'61Reregulated
7Flageolet2'61New to organ, place of Principal 2'
8Mixture II2'122New, place of Sesquialtera:# 1-21:  15 19
9Fagotto16'12Replace reed rank~#22-61:  12 15
10Oboe8'61     for unit stops with different Oboe pipes
11TremoloMechanical accessory
12Trompete8'0(Pos.)Unit reed borrowed from the Positiv
13Swell to Swell16'
14Swell Unison Off
15Swell to Swell4'
16Positiv to Swell16'
17Positiv to Swell8'
18Great to Swell8'
POSITIV61notes(Unenclosed)
1Spitzflöte8'61pipes[Entire and intact Positiv division of 8 stops,
2Singend Gedeckt8'6110 ranks, purchased from the Boston Symphony
3Nachthorn4'61Orchestra, through C&D,Inc., with new
4Nasat2-2/3'61reed stops added]
5Blockflöte2'61
6Terz1-3/5'61
7Sifflöte1'61
8Zimbel III2/3'183
9TremoloMechanical accessory
10Cromorne8'0(Gt.)New unit reed rank, borrowed from the Great
11Trompete8'61New unit reed rank
12Clarion4'12Extension of new unit reed rank
13Positiv to Positiv16'
14Positiv Unison Off
15Swell to Positiv16'
16Swell to Positiv8'
17Swell to Positiv4'
18Great to Positiv8'
19Great to Positiv4'
20ChimesExisting Chimes, playable as on Great manual
21ZimbelsternPreparation for rotating bell accessory instrument
PEDAL32notes(Unenclosed)
1Resultant32'0pipesWired from Pedal ranks
2Contrebasse16'32Pedal unit rank new to organ, open metal
3Subbass16'32Pedal unit rank existing
4Rohr Gedeckt16'0Borrowed from Swell Flute unit
5Gemshorn16'0Borrowed from Great Gemshorn unit
6Principal8'32New façade pipes in opposite grille & revoiced
7Bourdon8'12Pedal Subbass unit extension
8Rohr Flute8'0Borrowed from Swell Flute unit
9Quint5-1/3'0Borrowed from Great Gemshorn unit
10Choralbass4'12Pedal Principal unit extension
11Bombarde16'12New Positiv Trompete unit with bass extension
12Fagotto16'0Borrowed from Swell Oboe unit
13Trompete8'0Borrowed from the Positiv Trompete unit
14Hautbois8'0Borrowed from Swell Oboe unit
15Clarion4'0Borrowed from the Positiv Trompete unit
16Cremona4'0Borrowed from the Great Cromorne unit
17Great to Pedal8'
18Great to Pedal4'
19Swell to Pedal8'
20Swell to Pedal4'
21Positiv to Pedal8'

CONSOLE OPERATING ACCESSORIES

New solid-state operating relay for the entire organ
New solid-state combination action, nominally 25 levels of memory

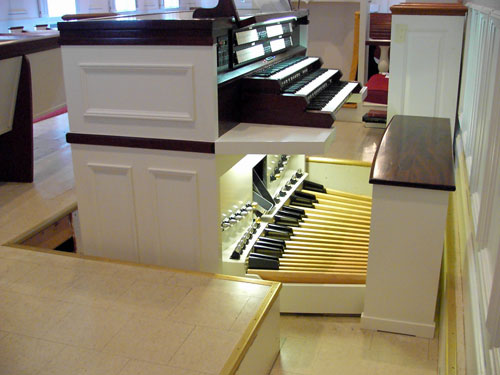

Existing console, pedalboard, and bench overhauled and refinished
Swell expression pedal
Register Crescendo pedal, Settable, with Indicator Lamps

Swell divisional thumb pistons #1 – 5
Great divisional thumb pistons #1 – 5
Choir divisional thumb pistons #1 – 5
Pedal divisional toe studs #1 – 5
GENERAL thumb pistons #1 – 15 (duplicated by Toe Studs)

Great to Pedal Reversible thumb piston and toe stud
Swell to Pedal Reversible thumb piston and toe stud
Positiv to Pedal Reversible Thumb piston
Swell to Great Reversible thumb piston
Positiv to Great Reversible Thumb piston
Swell to Positiv Reversible thumb piston
Great to Positiv Reversible Thumb piston
      (All coupler Reversibles programmable with Intercancelling)
Pedal Resultant 32’ Reversible Thumb piston
Positiv Zimbelstern Reversible Thumb piston and toe stud
Sforzando Reversible thumb piston and toe stud, with Indicator Lamp
Setter thumb piston
General Cancel thumb piston
SCOPE™ thumb piston  — (This accessory permits assignment of Piston functions, which allows
      for additional or special Generals or Reversibles)
